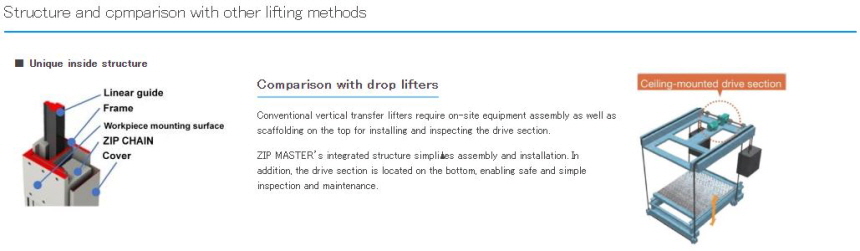

Cantilever type electric lifter that combines ZIP CHAIN

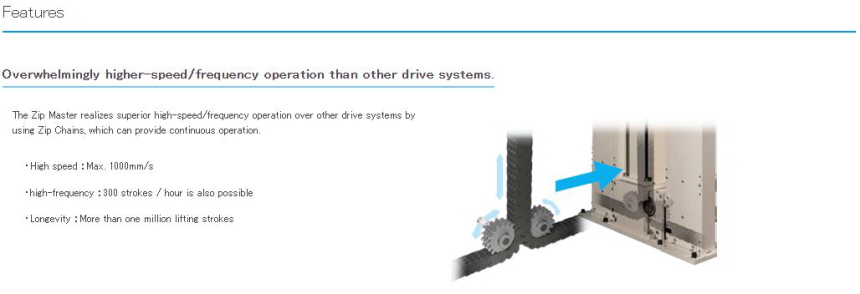

High-speed operation
High-speed lifting of up to 1000 mm / s (60 m / min) is possible.

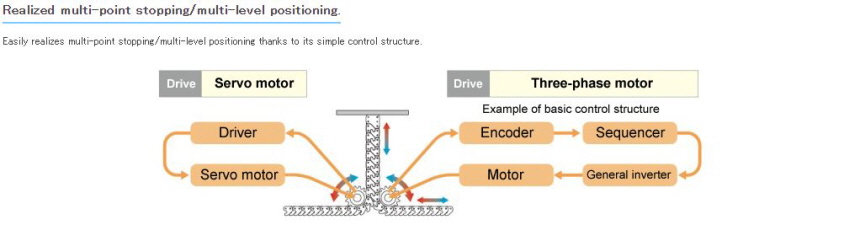

High-frequency operation
High-frequency operation is possible even with multi-point stopping.
Longevity
Long life of lifting 1 million cycles is realized, and maintenance is also easy

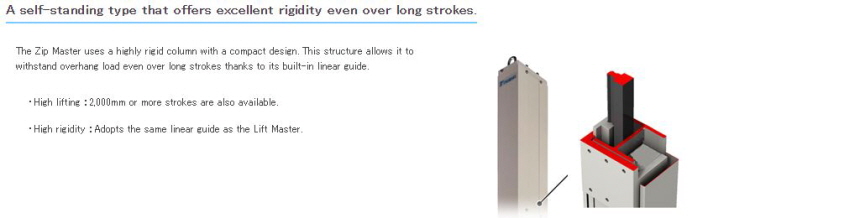

. High lifting
Long stroke exceeding 2,000mm of standard are also available.
