Achieving "high functionality" and "space saving" in vertical conveyance.

For those who are having trouble with insufficient thrust/stroke and improved takt time,
Medium/Large size Zip Chain Actuator with significantly expanded thrust and stroke ranges are now available.

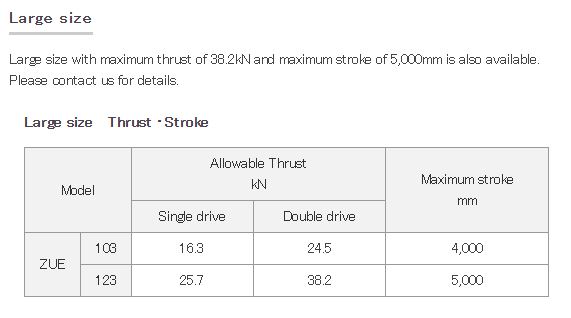

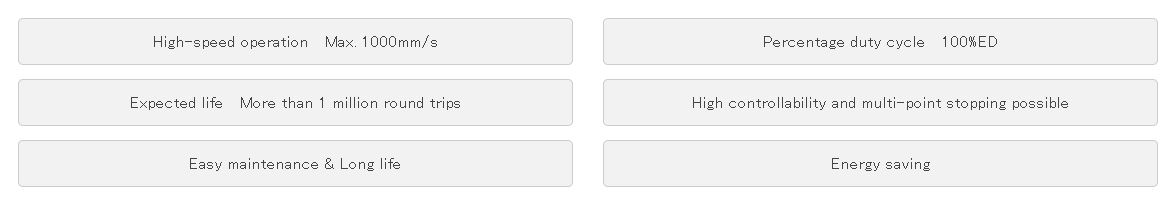

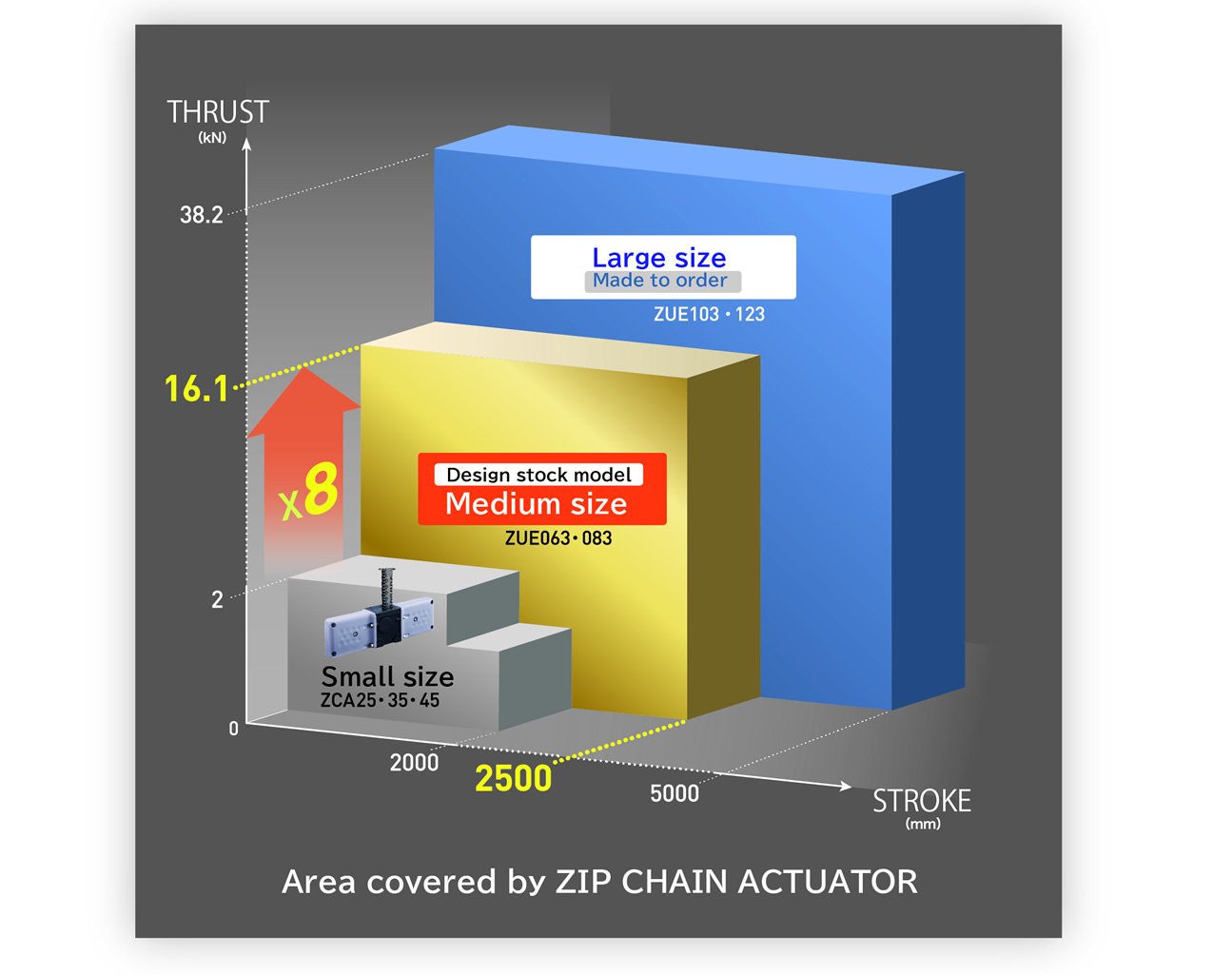

The range of thrust is expanded to "38.2kN" and stroke to "5000 mm". Furthermore, high-speed/high-frequency operation with
a maximum speed of 1000 mm/s and a hourly load rate of 100%ED is possible.
ZIP CHAIN ACTUATOR is becoming more and more powerful, enabling higher performance of the equipment.







Space-saving even with an expanded range of application

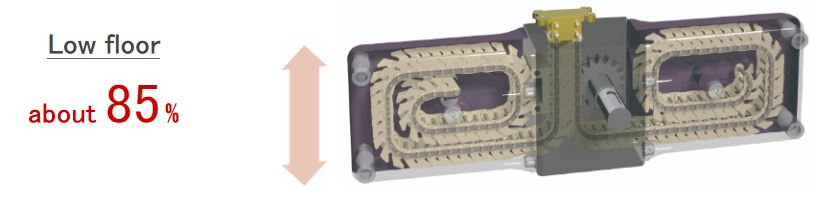

The chain is stored compactly, and the height of the storage case is about 85% lower than the stroke.

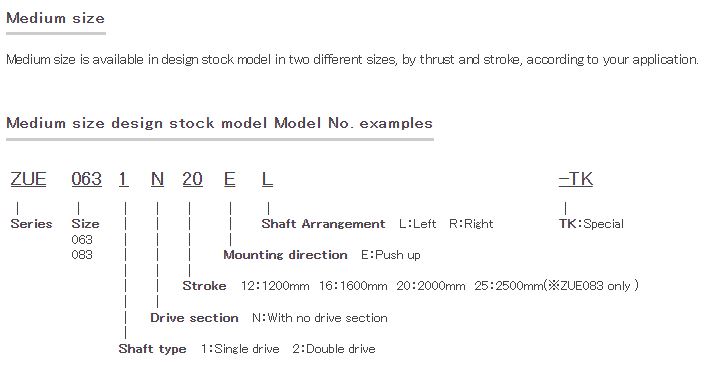

Medium/Large Size Introduction
